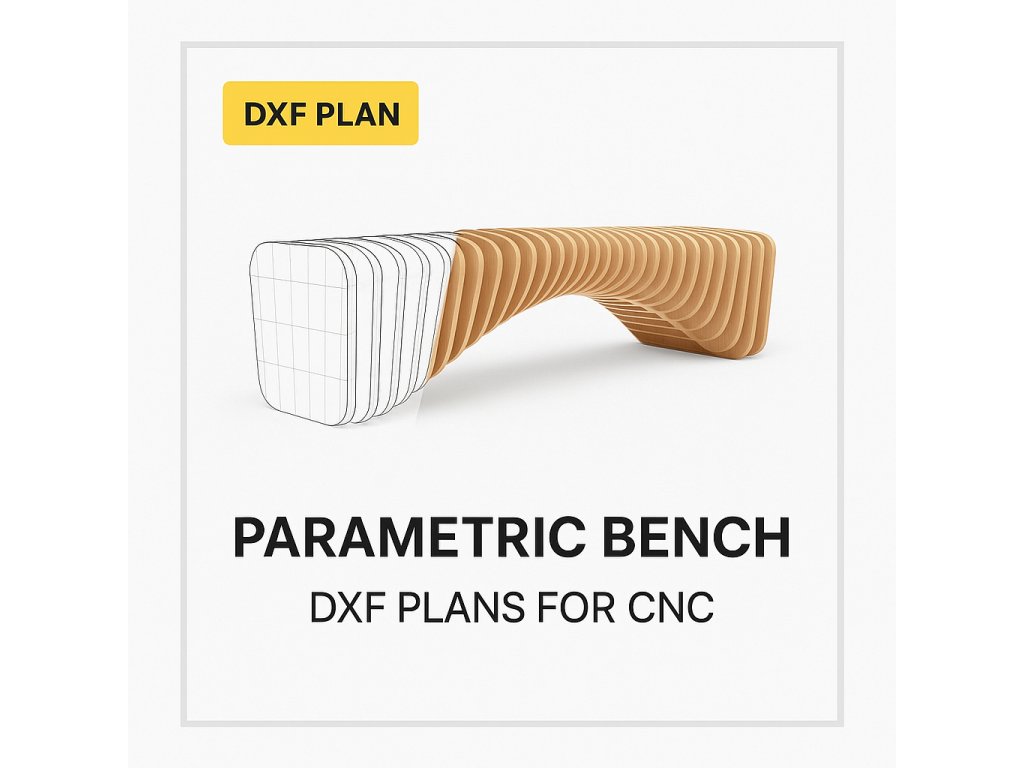

Parametric Bench — DXF Plans for CNC
CNC-ready DXF file for cutting a modern parametric bench. Includes the complete vector layout prepared for 16 mm plywood. Suitable for all standard CNC routers.
| Category: | Digital plans |
|---|
Build your own modern parametric bench using your CNC machine.
This digital product contains a ready-to-cut DXF file, optimized for standard sheet dimensions and 18 mm plywood. No PDF templates, no assembly booklet – just clean vector files for CNC machining.
What’s included
-
1× DXF file – parametric bench layout
-
Optimized for CNC routing
-
Nesting designed for 2440 × 1220 mm plywood
-
Smooth curves, no broken nodes
-
Clean vectors, no overlapping lines
Recommended material
-
16 mm plywood (birch/poplar)
-
Can be adjusted in CAM software for other thicknesses
Tools required
-
CNC router
-
CAM software (VCarve, Fusion 360, Carveco, Aspire, SheetCam, etc.)
-
Sanding tools
-
Wood glue / screws (optional)
Difficulty level
⭐ ⭐ ⭐ ✩ ✩ – Intermediate CNC project
Important
This is a digital product (DXF) → nothing physical is shipped.
Files can be used for personal or commercial production unless explicitly resold as digital content.
